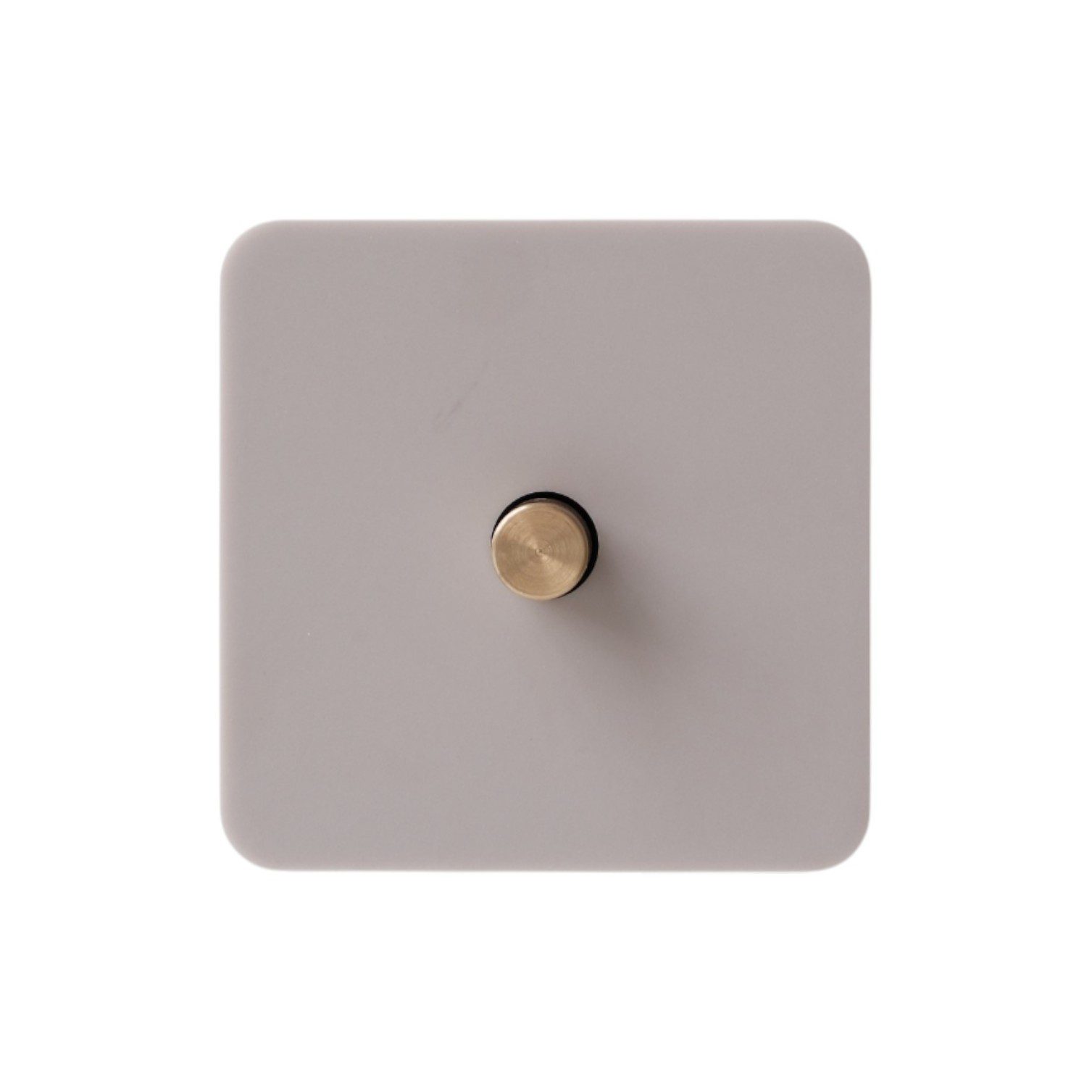

Curve Design Rotary Push Dimmer – Bright Little Things
New in our webshop: the Bright Little Things Curve design rotary push dimmers. These dimmers are part of the New Things and Bright Light collections and come in the Soft Curve finish.
The Curve design dimmers distinguish themselves from standard dimmers through their premium material — Solid Surface Stone — and the wide selection of subtle and elegant knobs. Each dimmer is supplied with a rotary push flush-mounted dimmer mechanism that effortlessly dims all types of lighting: LED, halogen, and incandescent.
The flush-mounted components are easy to install and work flawlessly with any lamp. The Solid Surface Stone finishing plates are securely and seamlessly attached to the mechanism using strong magnets.
The Bright Little Things Curve design dimmers are not only a beautiful addition to any interior, but they also make your installer happy thanks to their smart and simple installation.
Our BLT design dimmer is truly unique: it pairs perfectly with our exclusive sockets, yet also stands out as a refined eye-catcher when used as a stand-alone dimmer.
Technische Info
This universal trailing-edge dimmer is suitable for dimming various types of (dimmable) LED lighting, retrofit light sources, high-voltage halogen lamps (230V), and electronic transformers. The dimmer is particularly suitable for 2-wire installations and automatically adapts to the load type thanks to intelligent software.
Technical Specifications
Type: Push/rotary dimmer, base element
Operating voltage: 220–240 V AC (+6% / –10%), 50 Hz
Power: 1–200 VA / W (LED, halogen, electronic)
Number of LED drivers: 15 (multiple LEDs per driver possible)
Mounting method: Flush-mounted (minimum wall box depth 35 mm)
Operation: Rotary/push button
Dimming technology: Trailing edge (RC)
Minimum dim level: Adjustable between 5% and 30% to prevent flickering
Memory function: Yes
Hotel circuit: Can be integrated via changeover switch
Connection type: Push terminals, 2-wire
Shaft diameter/length: Universal, 4/6 mm x 10 mm
Material/colour: Metal (aluminium colour)
Protection rating: IP20
Ambient temperature: Up to 35°C
Dimensions: approx. 71 × 71 × 33 mm (H × W × D)
Certification: TÜV/CE, EN60669-1 / EN60669-2-1
Additional Features
- Push-in terminals for fast installation
- Can be combined with changeover switches (hotel circuit)
- Compatible with all common cover material brands
- Not compatible with Apple HomeKit, Google Assistant, or IFTTT
This dimmer is an all-round, reliable choice for professional LED applications up to 200 W.
